NEW · HDR Camera
A wireless 4K HDR camera system for surgeon-perspective video capture and modern room workflows.
Record the procedure from the operator’s point of view so teaching, documentation, and review match what the surgeon actually sees.
Remove cable friction from head-mounted video capture while keeping the system ready for live display, recording, and collaboration.
Make procedures easier to share with residents, remote observers, and internal teams without adding complexity to the surgical setup.
Autofocus and image-stabilization support keep the surgical field easier to follow through natural operator movement.

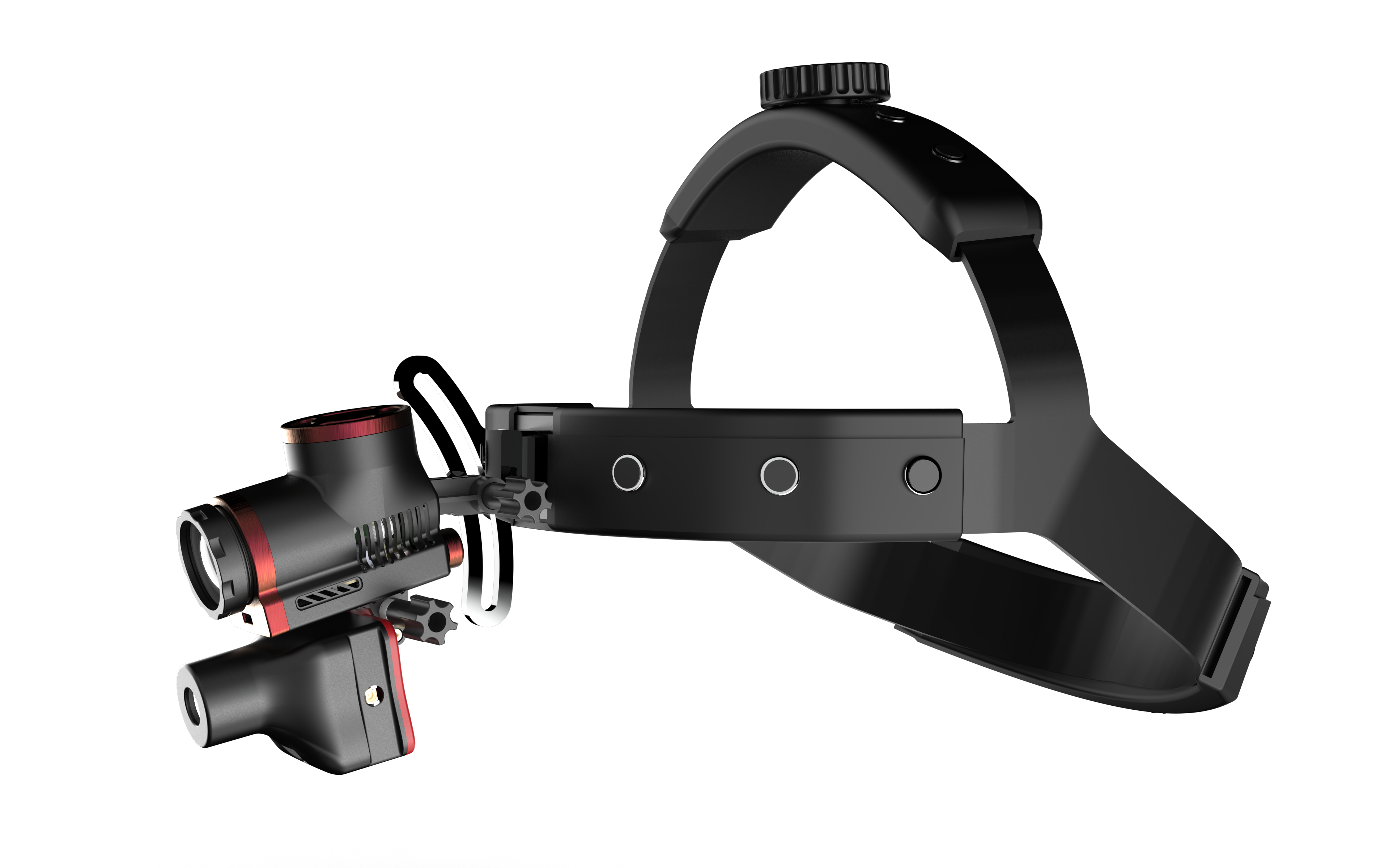

A head-mounted form factor keeps capture aligned with the surgeon while preserving comfort through longer procedures.
Fine-tune camera and light positioning so the captured image matches the surgeon’s workflow and preferred field of view.
Drag to rotate. Every component, every angle
Setup in under 5 minutes. No new IT infrastructure required.
Power the Transceiver by connecting it to high performance batteries. Place the headset and adjust the light accordingly.
Power on the NUC hubstation and it auto-pairs instantly.

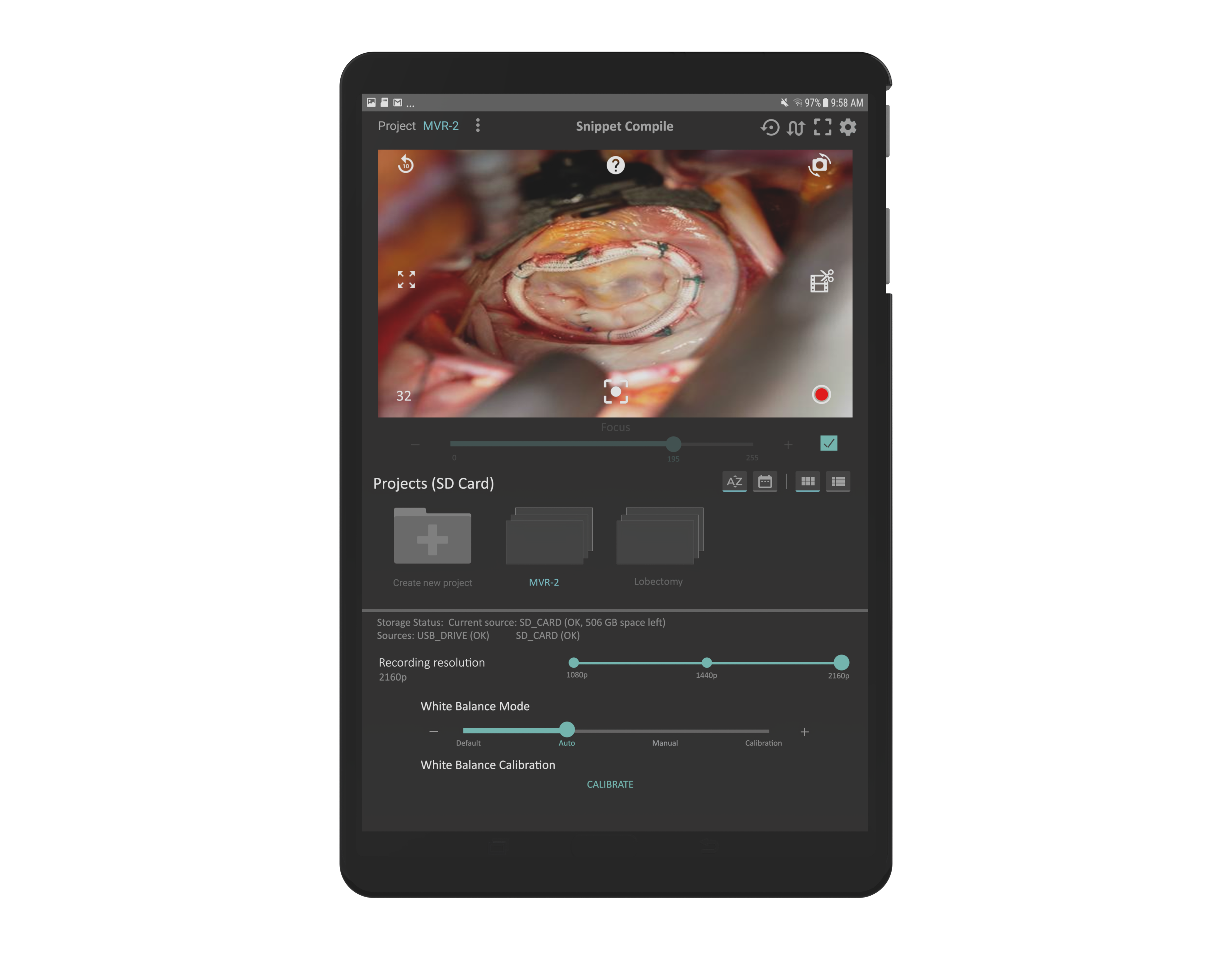

One-touch controls keep the video workflow simple. Voice commands let you have complete control.

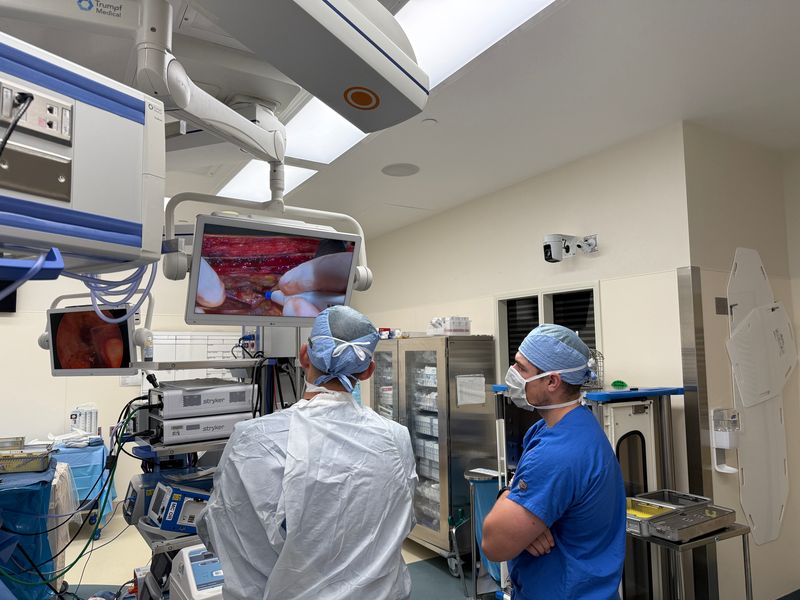

Cast the live video feed to any screen in the OR — ideal for teaching, observation, and documentation.
A side-by-side comparison against traditional wired camera setups.
Feature
Titan 4K HDR
Traditional
Video Resolution
True 4K
1080p HD
HDR Support
Yes — up to 120 dB
No
Image Stabilization
Electronic (software edge-detection)
None
Autofocus
Liquid lens + ToF
Basic / manual
Focal Length Options
3 camera modules available
Fixed
Extended Depth of Field
Neo Aperture
Fixed aperture
Light Spot Diameter
3 swappable sizes
Fixed
Built-in Microphone
Yes
No
Built-in Speaker
Yes
No
Signal Transmission
Fully wireless
Wired tether
Remote Control
Voice & Tablet app
Buttons / IR remote
Video Storage
Encrypted External SSD
Local / SD card
Artificial Intelligence
AI-Ready
No

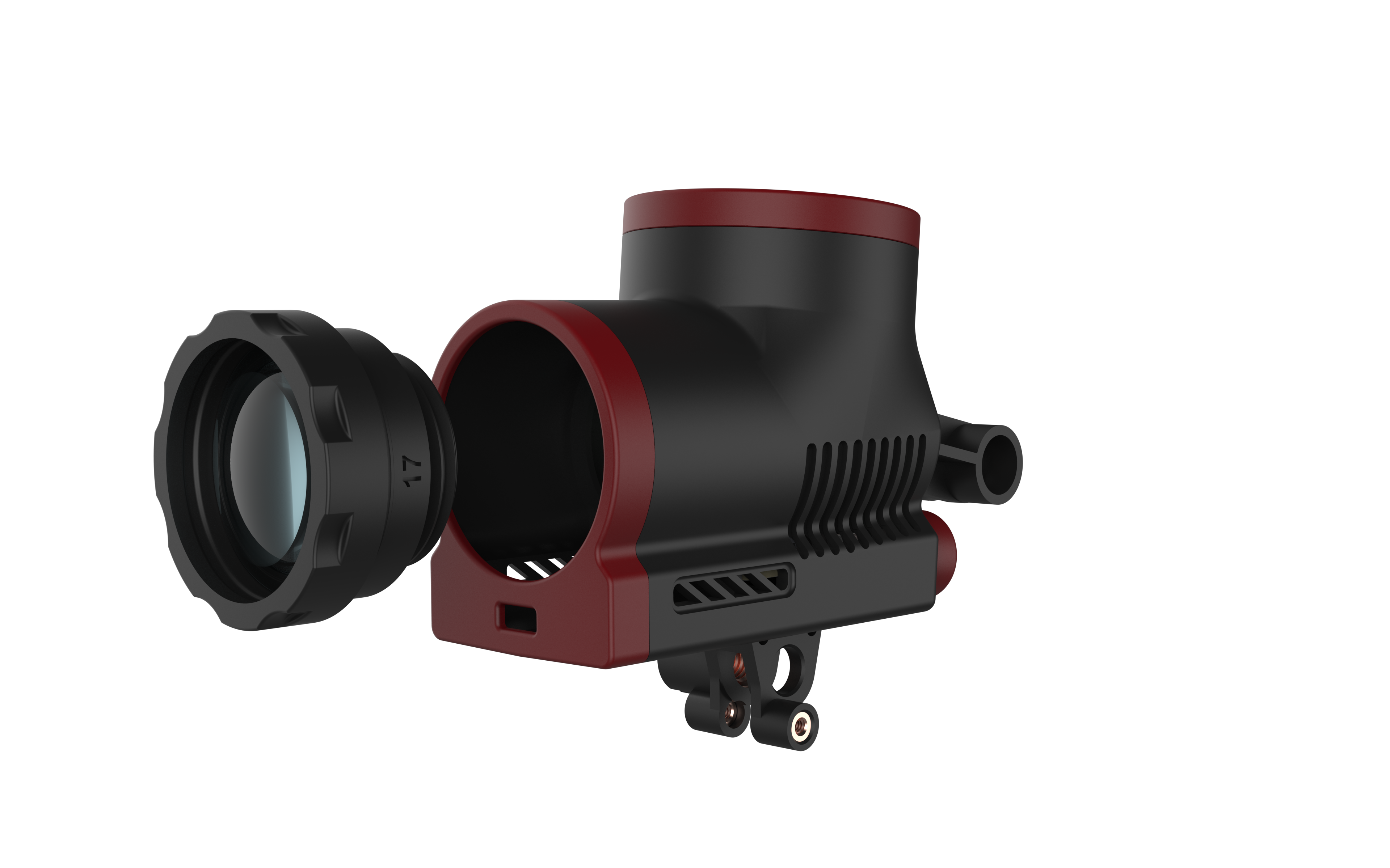

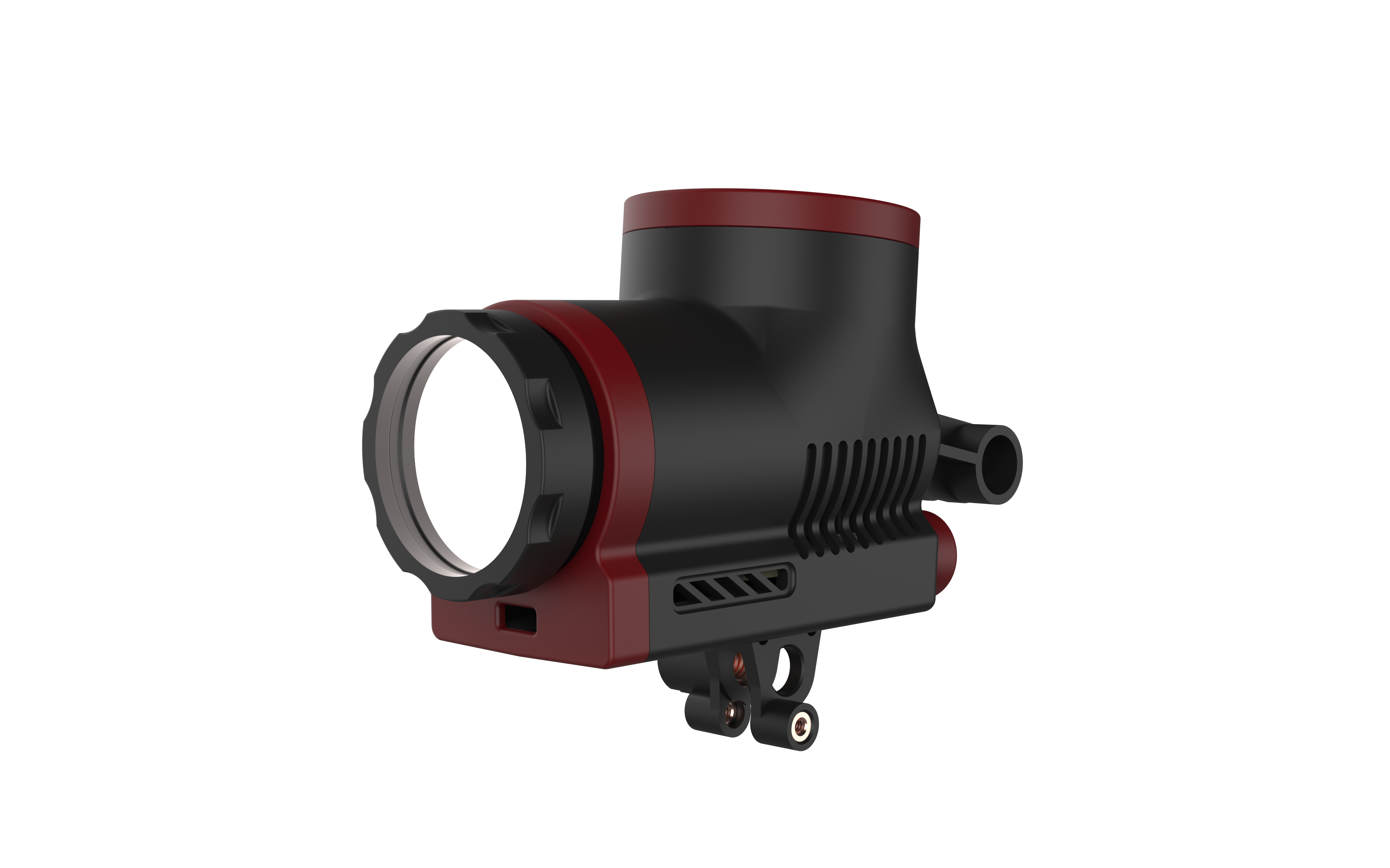

Illumination for close-up video capture, with integrated microphone, speaker

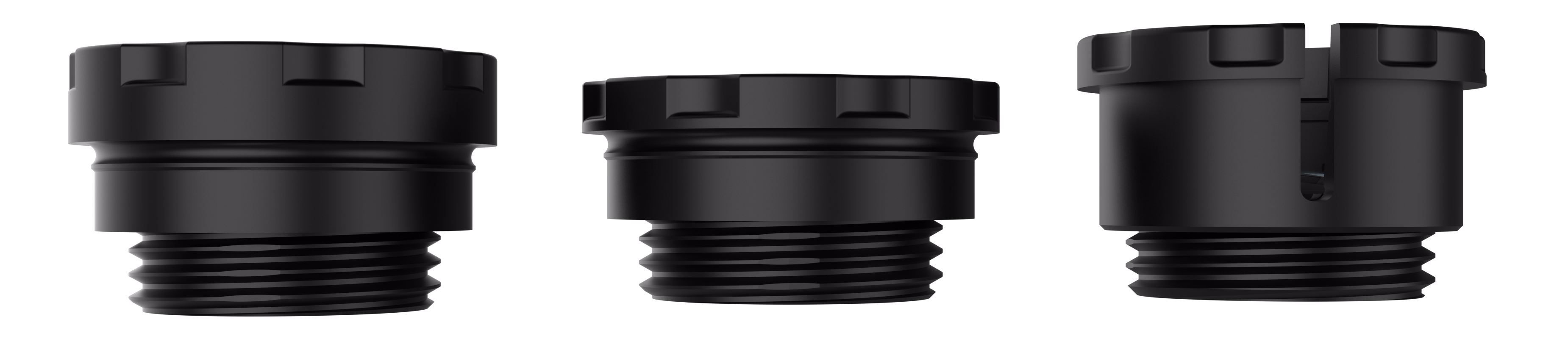

Interchangeable lenses to change the spot diameter. No reduction in luminance as with traditional Iris designs.
BRIGHTNESS
Variable spot diameter of 17 cm - 26cm with powerful, even illumination across the working area.
LIGHT TEMPERATURE
Daylight-balanced color temperature for accurate color reproduction.
INTERCHANGEABLE
Adjust spot diameter with interchangeable lenses to match different needs for field-of-view.
AUDIO
Hands-free voice commands and audio recording integrated directly into the light module.
Precision optics for surgeon-perspective video. 4K HDR imaging with software-assisted exposure and real-time image stabilization.
RESOLUTION
3840 x 2160 pixels at 30 frames per second (and 24 frames per second in HDR mode)
AUTOFOCUS
Tracks depth and motion for consistent focus throughout capture.

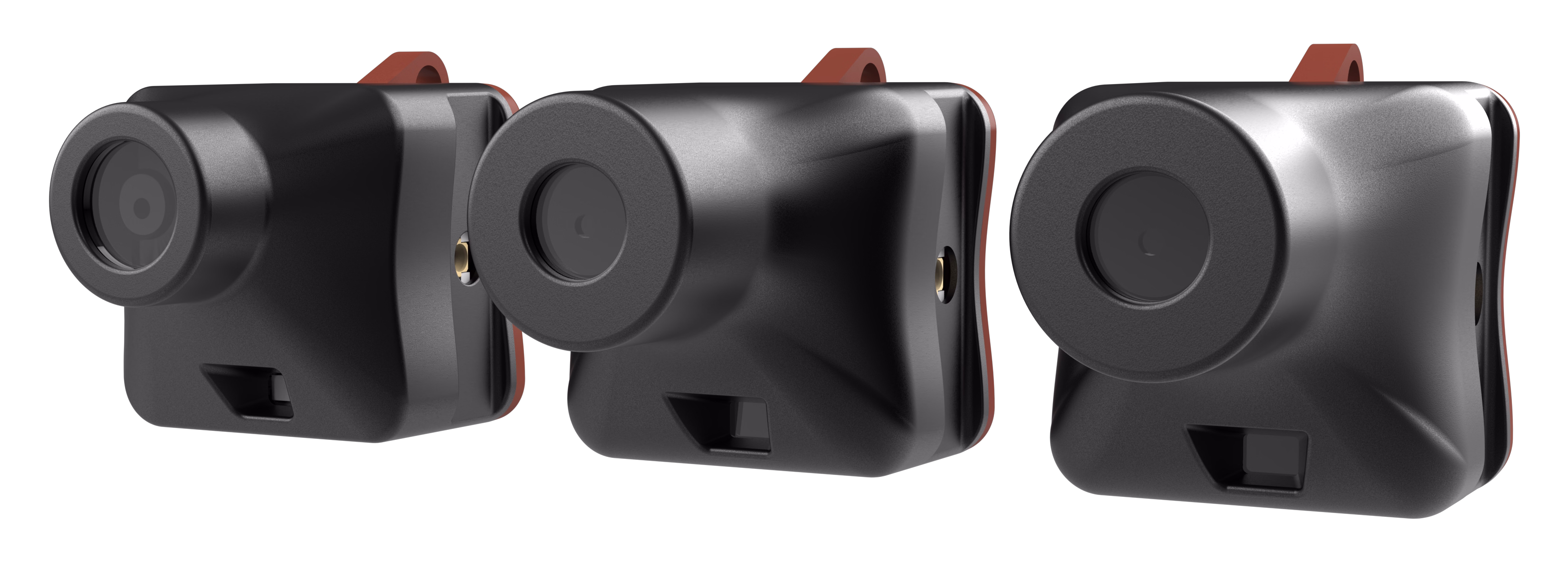

CAMERA MODULES
Three modules to chose from— wide, standard, and narrow focal lengths— on the same 4K HDR sensor.
ZOOM pan and tilt
10x digital zoom while maintaining image clarity. Zoom pan and tilt to adjust the image.
STABILIZATION
Edge detection algorithms reduce motion jitter from head movement, ensuring smooth video output.

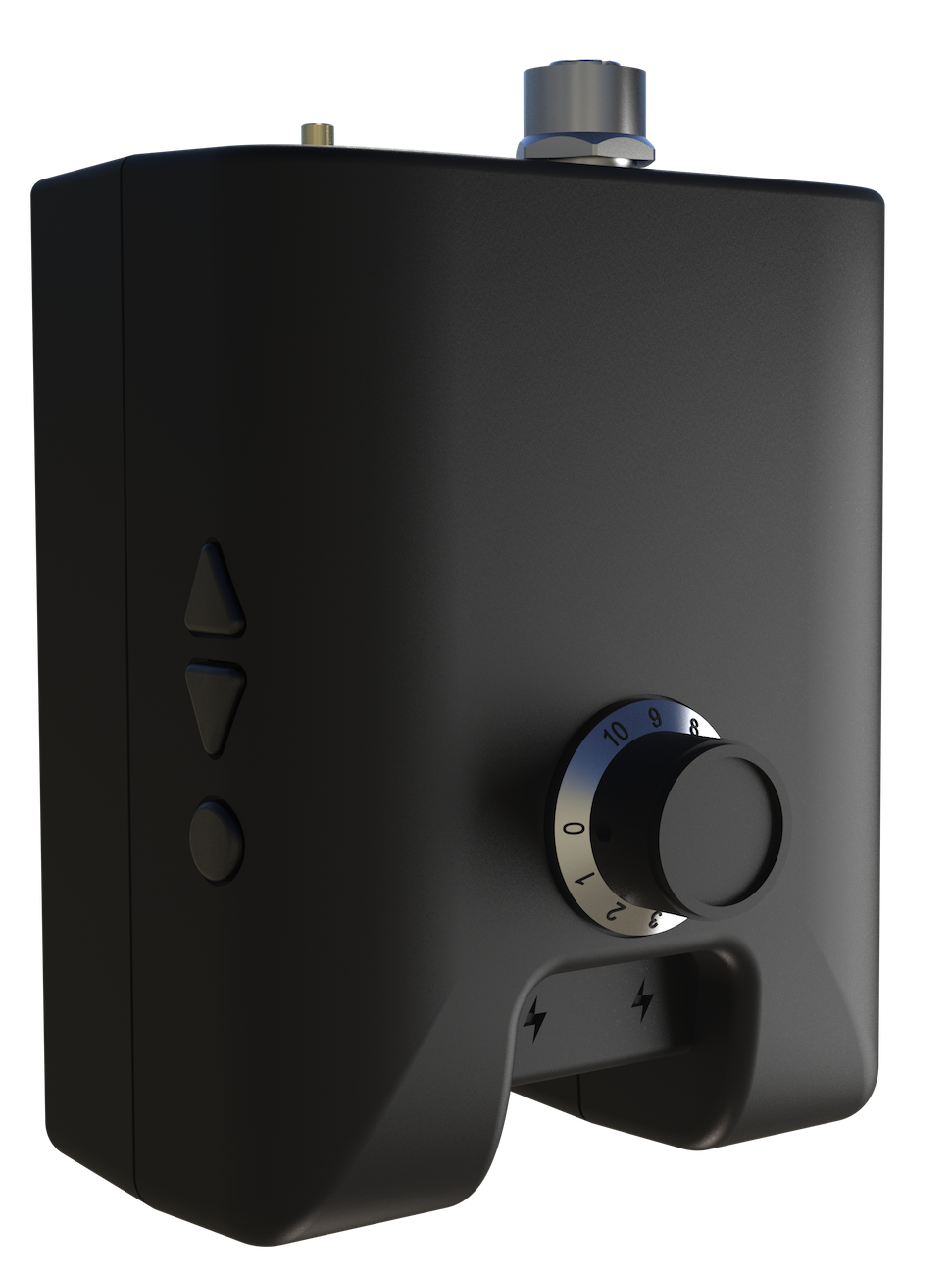

Belt-worn unit that houses the camera processing electronics, captures and encodes the surgical video, and transmits it wirelessly to the Hubstation for display and recording.
TRANSMISSION
Full 4K video transmission with forward error correction for reliable, artifact-free video capture.
MULTI-INPUT
Connect external video sources through USB or HDMI for multi-feed capture.
POWER
Fully battery powered for complete wireless freedom with no power cables tethering the user.
COLLABORATION
Project the surgeon's point of view onto large displays for shared viewing and collaboration.
See Titan 4K HDR in your own workflow. Typical demo scheduling is within one business day, with zero-obligation review.
